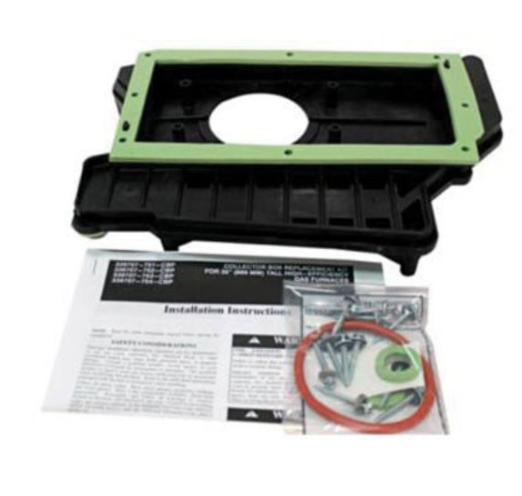

ICP 1186072 16 in. Collector Box Assembly

Collector Box Assembly, 16 in. Length, 8.25 in. Width, 5 in. Height

Includes:

• (1) - Collector Box Assembly (1186072)
• (2) - Inducer Housing Drain Gasket (-)
• (1) - Inducer Housing Inlet Gasket (-)
• (12) - Mounting Screw w/ Washer (-)
• (1) - Installation Instructions (443 06 5102 01)

Specifications

• Input Size: 40,000-80,000 BTU
• Inducer Hole Size: 3 1/4"
• Approximate Dimensions (LxW): 16" x 9"

Country of Origin: USA

Replaces Old ICP Part Numbers

• 1184293
• 1184339
• 1186181

FOR FURNACE MODELS:

F9MVE0401712A2

F9MVE0401712A3

F9MVE0601714A2

F9MVE0601714A3

F9MVE0801716A2

F9MVE0801716A3

G9MVE0401712A2

G9MVE0401712A3

G9MVE0601714A2

G9MVE0601714A3

G9MVE0801716A2

G9MVE0801716A3
