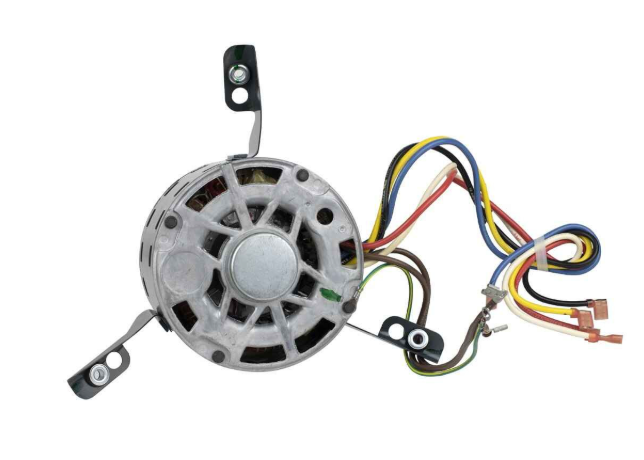

Carrier 5KCP39DGV697SOEM OEM Carrier blower motor

• Horsepower: 1/5
• Voltage: 115
• Hertz: 60
• Amperage: 2.80
• Phase: 1
• RPM: 1075
• Speeds: 4
• Frame: 48
• Bearings: Sleeve
• Capacitor Needed: 7.5 MFD @ 370 VAC or 10 MFD @ 370 VAC (Call If Unsure Which One You Need)
• Mounting: Wing & Grommet
• Number of Mounting Wings: 3
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2"
• Shaft Length: 4"
•

Replacement blower fan for part number

5KCP39DGV697S

Used in furnace models below:

312AAV024045AAJA, 312AAV024045ABJA, 312AAV024045ACJA, 312AAV024045ADJA, 312AAV024045AEJA, 312AAV024070AAJA, 312AAV024070ABJA, 312AAV024070ACJA, 312AAV024070ADJA, 312AAV024070AEJA, 312JAV024045AAJA, 312JAV024045ABJA, 312JAV024045ACJA, 312JAV024045ADJA, 312JAV024045AEJA, 312JAV024070AAJA, 312JAV024070ABJA, 312JAV024070ACJA, 312JAV024070ADJA, 312JAV024070AEJA, 312JAV036045ACJA, 312JAV036045ADJA, 58CTA045---10108, 58CTA045---11108, 58CTA045---12108, 58CTA045---13108, 58CTA045---14108, 58CTA070---10108, 58CTA070---11108, 58CTA070---12108, 58CTA070---13108, 58CTA070---14108, 58CTX045---10108, 58CTX045---11108, 58CTX045---12108, 58CTX045---13108, 58CTX045---14108, 58CTX070---10108, 58CTX070---11108, 58CTX070---12108, 58CTX070---13108, 58CTX070---14108
